Rope Bridges

Product Details

16 mm enforced rope, 4-strands P.P.M with steel core.

Mesh size: 30 x 30 cm, the ball connectors are made from a high-quality plastic material.
Wooden steps are optional, and they are made in the dimensions:
7.50 x 5.00 x 7.50 cm

End-to-end connection fittings are made using M12 eyebolts, alternative connection on request.

Application

Products always to be mounted according to EN 1176

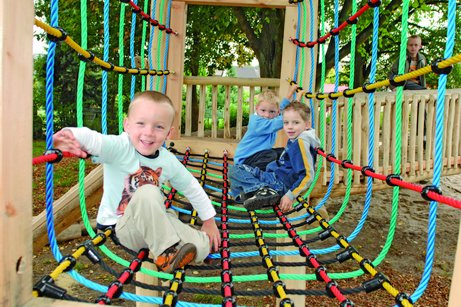

Rope Bridges - First Image

The suspension bridges are supplied in R&T standard lengths:
2.00 m | 2.50 m | 3.00 m | 4.00 m, customized lengths on request.
